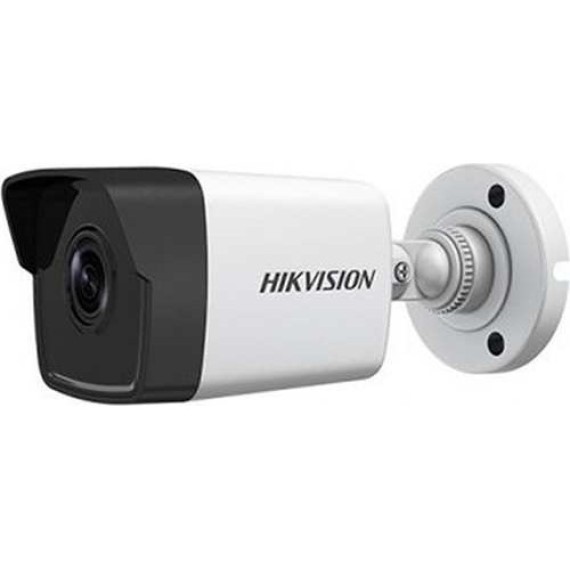

CAMERA IP HỒNG NGOẠI 1.0 MEGAPIXEL HIKVISION DS-2CD1201D-I5

Sensor type

1/4 inch Progressive Scan CMOS

Minimum Illumination

0.01Lux @ (F1.2, AGC ON), 0 Lux with IR

shutter

1/3 of a second to 1 / 100,000 sec

Shot

4mm, horizontal viewing angle: 73.1 ° (6mm, 8mm, 12mm optional)

Day and night mode

ICR filter type

Wide Dynamic Range

Digital WDR

BLC

Support, choose region

Digital Noise Reduction

3D digital noise reduction

Video compression standards

H.264 / MJPEG

H.264 encoding type

BaseLine Profile / Main Profile

Compression output rate

32 Kbps ~ 8Mbps

The maximum image size

1280 x 720

Frame rate

50Hz: 25fps (1280 x 720)

60Hz: 30fps (1280 x 720)

Interface Protocol

ONVIF, PSIA, CGI, ISAPI

Intelligent Alarm

Motion detection, dynamic analysis, occlusion alarm, cable break, IP address conflict

Support Agreement

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour

General features

Anti-flicker, dual-stream, heartbeat, mirroring, password protection, video cover, watermark

Communication Interface

1 RJ45 10M / 100M adaptive Ethernet port

Power supply

12VDC

Power

I5: 4.5W (Max)

Protection class

IP66

Infrared radiation from

50 meters

Dimensions

147.49 x 78.2 x 92.87 mm

Weight

350g
