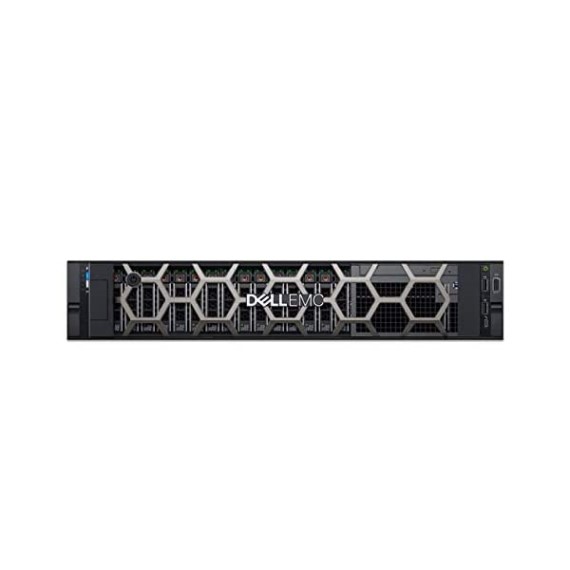

DELL POWEREDGE R740 3.5" BRONZE 3104 (2CPU)

2 x Intel® Xeon® Bronze 3104 1.7G, 6C/6T, 9.6GT/s 2UPI, 8M Cache, No Turbo, No HT (85W) DDR4-2133
32GB (2x 16GB) RDIMM, 2666MT/s, Dual Rank
2 x Dell 480GB SSD SATA Mixed Use 6Gbps 512e 2.5in Hot plug, 3.5in HYB CARR
PERC H730P RAID Controller, 12Gb/s SAS, 2Gb NV Cache, Minicard (RAID 0,1,5,6,10,50,60)
Broadcom 5720 QP 1Gb Network Daughter Card
iDRAC9 Enterprise with OpenManage Essentials, Server Configuration Management
8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD Hot-plug
Slim 8X DVD+/-RW Internal Drive
Dual, Hot-plug, Redundant Power Supply (1+1), 750W
NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord
Rack (2U), ReadyRails™ Sliding Rails With Cable Management Arm
Warranty : 3 Year ProSupport and NBD On-site Service
Gía đã bao gồm VAT

Canonical® Ubuntu® LTS Citrix® XenServer®
Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server VMware® ESXi

24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only

Front drive bays:
Up to 16 x 2.5” SAS/SATA/SSD, max 60TB
Up to 8 x 3.5” SAS/SATA, max 80TB

TPM 1.2/2.0 optional Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase

Network daughter card options:
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE

Front ports:
Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC

Direct Micro-USB Rear ports:
Video, serial, 2 x USB 3.0, dedicated iDRAC network port

Video card:
VGA

PCIe:
Up to 8 x Gen3 slots, Up to 4 x16

Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)
Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy High performance fans available

Internal controllers:
PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140

Boot Optimized Storage Subsystem:
HWRAID 2 x M.2 SSDs 120GB, 240 GB

External PERC (RAID):
H840

External HBAs (non-RAID):
12 Gbps SAS HBA

Embedded / At-the-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module

Consoles
OpenManage Enterprise (coming soon)
OpenManage Essentials
OpenManage Power Center

Mobility
OpenManage Mobile

Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs

OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC software (available from BMC)

OpenManage Connections
Nagios Core and Nagios XI
HPE Operations Manager i (OMi)
IBM Tivoli® Netcool/OMNIbus (coming soon)
IBM Tivoli® Network Manager IP Edition (coming soon)
