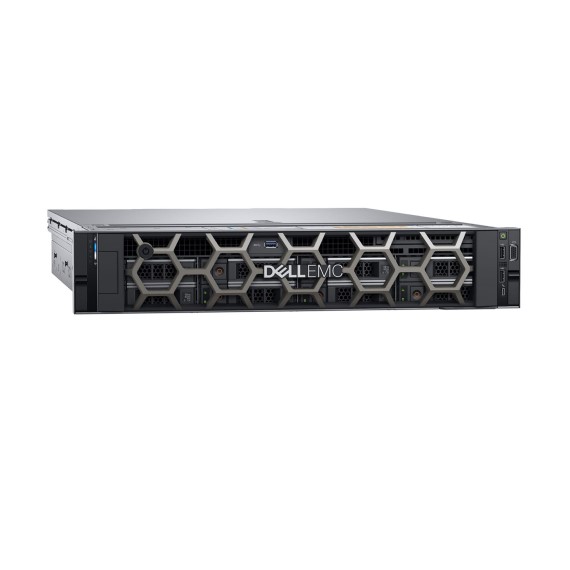

DELL POWEREDGE R740 3.5" SILVER 4108

DELL POWEREDGE R740 3.5" SILVER 4108

PROCESSOR

• Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor

Operating System

• Canonical® Ubuntu® LTS Citrix® XenServer®
  Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux
  SUSE® Linux Enterprise Server VMware® ESXi

Memory

• 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
  Up to 12 NVDIMM, 192 GB Max
  Supports registered ECC DDR4 DIMMs only

Drive Bays

• Front drive bays:
  Up to 16 x 2.5” SAS/SATA/SSD, max 60TB
  Up to 8 x 3.5” SAS/SATA, max 80TB

Dimensions

• Form factor:
  Rack (2U)

  Chassis depth:
  715.5 mm

Data Protection

• TPM 1.2/2.0 optional Cryptographically signed firmware
  Secure Boot
  System Lockdown
  Secure erase

Ports

• Network daughter card options:
  4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE

  Front ports:
  Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC

  Direct Micro-USB Rear ports:
  Video, serial, 2 x USB 3.0, dedicated iDRAC network port

  Video card:
  VGA

  PCIe:
  Up to 8 x Gen3 slots, Up to 4 x16

Chassis

• Optional LCD or Security bezel

Power

• Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
  48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)
  Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy High performance fans available

RAID Controllers

• Internal controllers:
  PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140

  Boot Optimized Storage Subsystem:
  HWRAID 2 x M.2 SSDs 120GB, 240 GB

  External PERC (RAID):
  H840

  External HBAs (non-RAID):
  12 Gbps SAS HBA

Management

• Embedded / At-the-Server
  iDRAC9 with Lifecycle Controller (Express, Enterprise)
  iDRAC Direct
  iDRAC REST API with Redfish
  Quick Sync 2 BLE/wireless module

  Consoles
  OpenManage Enterprise (coming soon)
  OpenManage Essentials
  OpenManage Power Center

  Mobility
  OpenManage Mobile

  Tools
  iDRAC Service Module
  OpenManage Server Administrator
  OpenManage Storage Services
  Dell EMC Repository Manager
  Dell EMC System Update
  Dell EMC Server Update Utility
  Dell EMC Update Catalogs

  OpenManage Integrations
  Microsoft® System Center
  VMware® vCenter™
  BMC software (available from BMC)

  OpenManage Connections
  Nagios Core and Nagios XI
  HPE Operations Manager i (OMi)
  IBM Tivoli® Netcool/OMNIbus (coming soon)
  IBM Tivoli® Network Manager IP Edition (coming soon)
