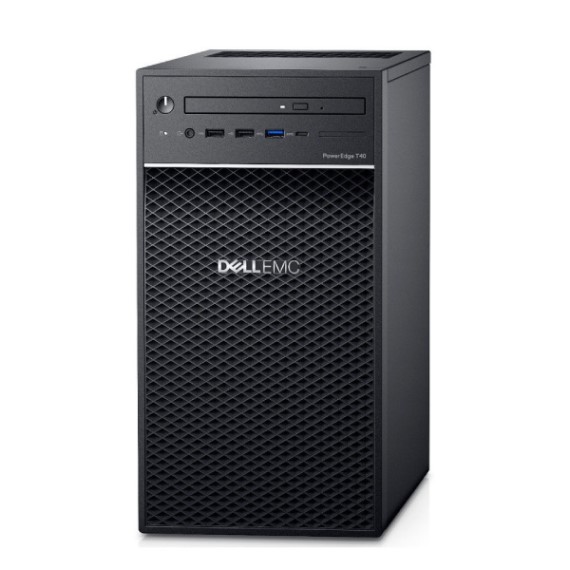

DELL POWEREDGE T40 TOWER E-2224G

DELL POWEREDGE T40 TOWER E-2224G

PROCESSOR

• Up to one Intel^® Xeon^® E processor

MEMORY

• DIMM Speed
  Up to 2666 MT/s

  Memory Type
  UDIMM

  Memory Module Slots
  4 DDR4 slots

  Maximum RAM
  UDIMM 64GB

STORAGE CONTROLLERS

• Software RAID
  Intel^® VROC 6.x

POWER SUPPLIES

• Bronze 300W

DIMENSIONS & WEIGHT

• Height
  335.0mm (13.2")

  Width
  176.53mm (7.0")

  Depth
  359.50mm (14.2")

  Weight
  8.0Kg (17.6lbs.)

SECURITY

• Cryptographically signed firmware
  Secure Boot
  Intel^® SGX (Software Guard Extensions)
  TPM 2.0

SUPPORTED OPERATING SYSTEMS

• Canonical^® Ubuntu^® Server LTS
  Microsoft^® Windows Server^® LTSC with Hyper-V

RECOMMENDED SUPPORT

• Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.

PORTS

• Network options
  1 x 1GbE

  Front ports
  2 x USB 2.0
  1 x USB 3.1
  1 x USB 3.1

  Rear ports
  2 x PS2
  2 x Display ports
  1 x Serial
  1 x Audio
  2 x USB 2.0
  4 x USB 3.1

STORAGE

• Front Bays
  Up to 3 x 3.5" SAS/SATA (HDD), max 12TB

SLOTS

• PCIe
  1 X Gen3 slot (x16)
  2 X Gen3 slot (x4)
  1 X PCI

MANAGEMENT

• Embedded / At-the-Server
  Intel AMT 12.0 (Intel^® Xeon^®)
  Intel^® Standard Manageability (Intel^® Core™, Intel^® Pentium^®)
