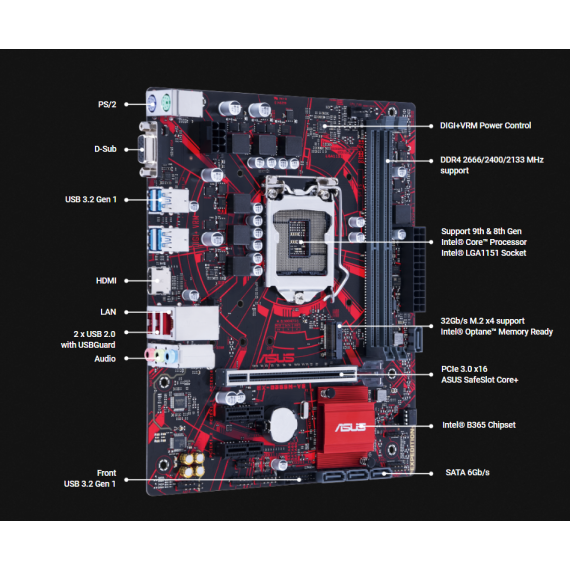

MAINBOARD ASUS EX-B365M-V5
| Bộ vi xử lý |
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Bộ nhớ Ram |
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
| Khe cắm mở rộng |
1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1 |
| Chipset |
Intel® B365 |
| Giao tiếp |
Intel® B365 Chipset : 6 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) Intel® B365 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, red, 4 at mid-board) |
| Lan |
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Âm thanh |
Realtek® ALC887 8-Channel High Definition Audio CODEC |
| Hệ điều hành hỗ trợ |
Windows® 10 64-bit |
| Cổng I/O phía sau |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports |
| Cổng I/O ở trong |
1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| Kích thước |
uATX Form Factor 8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm ) |
| Bảo hành |
36 tháng |
| Hãng sản xuất |
ASUS |
- 1.720.000đ
