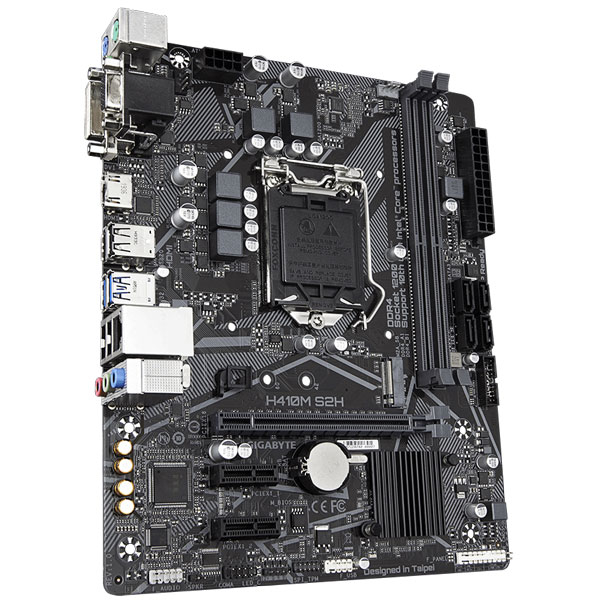

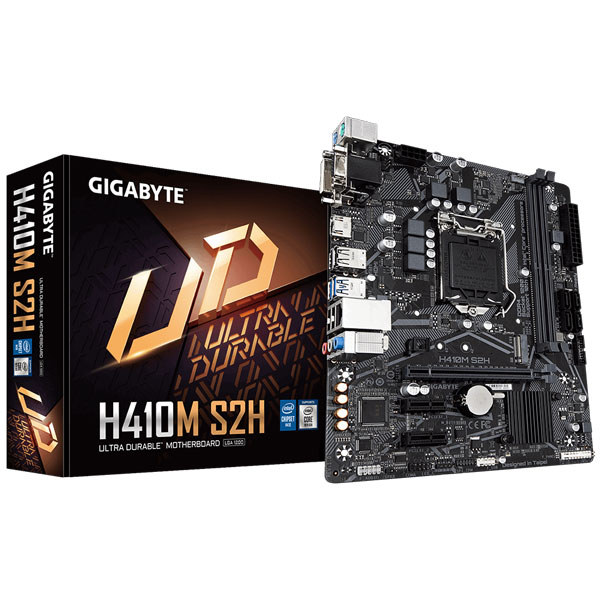

Mainboard GIGABYTE H410M S2H

  • 0 khách hàng đánh giá
  • 490 lượt xem

Mainboard GIGABYTE H410M S2H

THÔNG SỐ KỸ THUẬT

Bộ vi xử lý

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU

Bộ nhớ Ram

Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 3.0 standard.)

Chipset

Intel® H410 Express Chipset

Giao tiếp

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Hệ điều hành hỗ trợ

Support for Windows 10 64-bit

Cổng I/O phía sau

1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Cổng I/O ở trong

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper

Lan

Realtek® GbE LAN chip (1000/100 Mbit)

Âm thanh

Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

Kích thước

Micro ATX Form Factor; 22.6cm x 18.5cm

Bảo hành

12 tháng

Hãng sản xuất

GIGABYTE

MÔ TẢ TÍNH NĂNG

Mainboard GIGABYTE H410M S2H hỗ trợ Bộ xử lý Intel ® Core ™ thế hệ thứ 10. Realtek 8118 LAN là chip mạng thân thiện và hiệu suất cao dành cho người chơi game với phân bổ băng thông tự động để đảm bảo mức ưu tiên mạng cao nhất của trò chơi hoặc ứng dụng. Nó có thể cung cấp cho người dùng các tính năng toàn diện nhất và trải nghiệm Internet nhanh nhất và mượt mà nhất.

Bo mạch chủ GIGABYTE tập trung vào việc cung cấp công nghệ M.2 cho những người đam mê muốn tối đa hóa tiềm năng hệ thống của họ. Tận hưởng khả năng hiển thị HD thực sự bằng cách sử dụng các công nghệ đầu ra kỹ thuật số tích hợp phổ biến nhất trên màn hình và TV HD hiện nay.

Mainboard GIGABYTE H410M S2H
Mainboard GIGABYTE H410M S2H
  • 1.760.000đ
