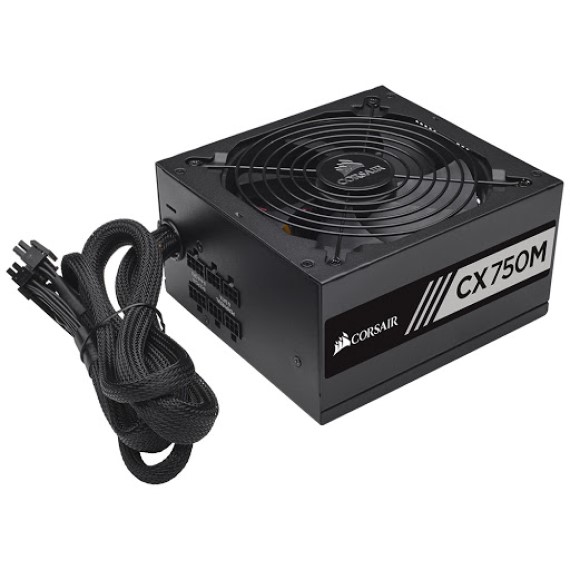

NGUỒN POWER SUPPLY CORSAIR CX750M - CP-9020061-NA

NGUỒN POWER SUPPLY CORSAIR CX750M - CP-9020061-NA

Hãng sản xuất	Corsair
Model	CX750M
Chuẩn nguồn	80 Plus Bronze
Công suất danh định	750W
Đầu cấp điện cho main	20+4pins
Đầu cấp điện cho hệ thống	4 x SATA, 4 x ATA,  2 x PCI-E (6+2) pin, 2 x Floppy
Quạt làm mát	Fan 12cm
Điện áp vào	100-240V
Phụ kiện kèm theo	cáp nguồn
Đặc điểm khác	Chứng chỉ : 80 Plus Bronze (cho hiệu suất >82%);1 x ATX 20 (20+4) pin, 1 x EPS/ATX12V (4+4) pin. Single Rail.

Corsair CX750M ATX Power Supply
AC Input Rating	DC Output Rating
AC Input: 100V - 240V	DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Current: 12A - 6A	Max Load	25A	25A	62A	0.8A	3A
Frequency: 47Hz - 63Hz	Maximum Combined Wattage	130W		744W	9.6W	15W
		Total Power: 750W



PERFORMANCE, RELIABILITY, AND THE CONVENIENCE OF MODULAR CABLING FOR BASIC SYSTEM UPGRADES

CX SERIES MODULAR POWER SUPPLY UNITS ARE AN EXCELLENT CHOICE FOR BASIC SYSTEM BUILDS AND DESKTOP PC COMPUTER UPGRADES, OFFERING HIGH RELIABILITY, LOW NOISE, AND THE FLEXIBILITY OF MODULAR CABLING.

 Low noise

80 PLUS Bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation.

Faster installation and better-looking builds

The modular cabling system lets you use only the cables you need. You get to save space and reduce clutter for a cleaner-looking build and improved airflow.



Reliable and compatible

CX Series Modular is built and tested to strict standards for trouble-free installation and smooth operation.



Good looks

The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.

Corsair engineering and quality control

Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the CX Series Modular, because you need confidence and reliability regardless of your build budget.

 Modular cabling system

Since the peripheral power cables aren’t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC’s case where they can add to the clutter and interfere with airflow.



Large-diameter, thermally controlled fan

Once you’ve installed a PSU, you shouldn’t have to think about it. Employing a thermally controlled fan makes the CX Series Modular quieter at idle, and the large diameter reduces noise even when you’re pushing your system hard.
