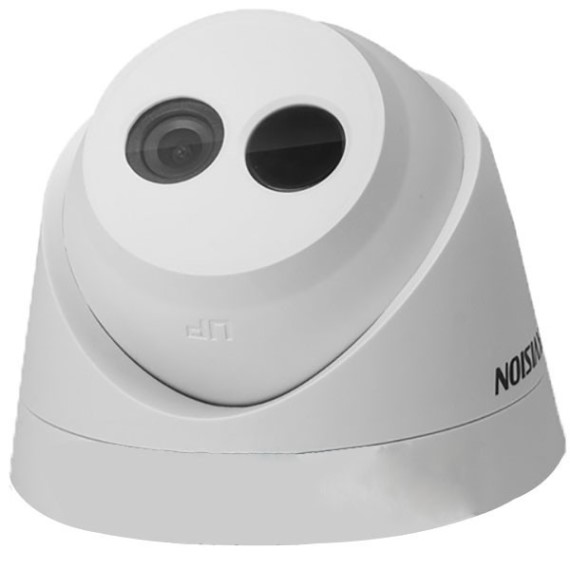

CAMERA IP DOME HỒNG NGOẠI 1.0 MEGAPIXEL HIKVISION DS-2CD1301D-I
|
Sensor type |
1/4 inch Progressive Scan CMOS |
|
Minimum Illumination |
@ 0.01Lux (F1.2, the AGC the ON), 0 Lux the with the IR |
|
0.028Lux @ (F2.0, the AGC the ON), the with the IR 0 Lux |
|
|
shutter |
1/3 of a second to 1 / 100,000 sec |
|
Shot |
4mm, horizontal viewing angle: 73.1 ° (2.8mm, 6mm, 8mm optional) (equivalent to 1/3 'sensor) |
|
Lens Interface Type |
M12 |
|
Adjust the angle |
Level: 0 ° ~ 360 °; Vertical: 0 ° ~ 75 °; rotation: 0 ° ~ 360 ° |
|
Day and night mode |
ICR filter type |
|
Wide Dynamic Range |
Digital WDR |
|
BLC |
Support, choose region |
|
Digital Noise Reduction |
3D digital noise reduction |
|
Video compression standards |
H.264 / MJPEG |
|
H.264 encoding type |
BaseLine Profile / Main Profile |
|
Compression output rate |
32 Kbps ~ 8Mbps |
|
The maximum image size |
1280 x 720 |
|
Frame rate |
50hz: 25fps (1280 x 720) |
|
60Hz: 30fps (1280 x 720) |
|
|
Image Settings |
Saturation, brightness, contrast through IE browser client or adjustable |
|
BLC |
Support, choose region |
|
Interface Protocol |
ONVIF, PSIA, CGI, ISAPI |
|
Intelligent Alarm |
Motion detection, dynamic analysis, occlusion alarm, cable break, IP address conflict |
|
Support Agreement |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
|
General features |
Anti-flicker, dual-stream, heartbeat, mirroring, password protection, video cover, watermark |
|
Communication Interface |
1 RJ45 10M / 100M adaptive Ethernet port |
|
power supply |
12VDC |
|
Power |
3.2W MAX |
|
Infrared radiation from |
10 m |
|
Dimensions |
Φ110 x 80.9mm |
|
weight |
190g |
- 950.000đ
