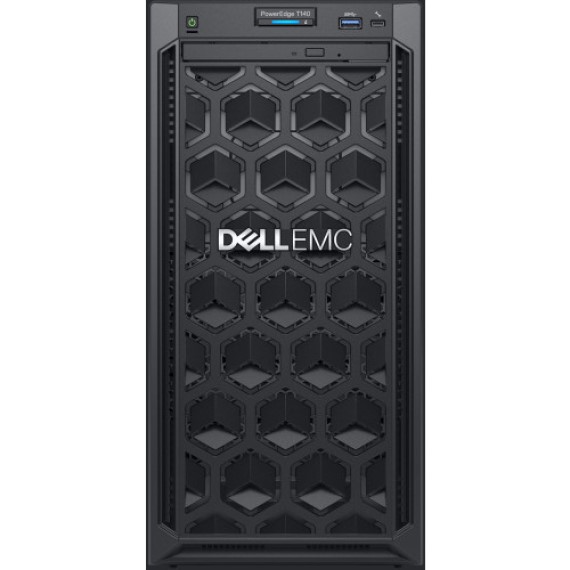

DELL POWEREDGE T140 E-2274G

DELL POWEREDGE T140 E-2274G

PROCESSOR

• 1 processor from the following:

  Intel® Xeon® E-2100 product family,
  Intel Pentium®,
  Intel Core i3®,
  Intel Celeron®

MEMORY

• 4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max supports registered ECC.

STORAGE CONTROLLERS

• Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
  Software RAID: PERC S140
  External HBAs: 12Gbps SAS HBA (non-RAID)
  Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)

DRIVE BAYS

• Up to 4 x 3.5” cabled bays

POWER SUPPLIES

• Single Cabled 365W PSU

DIMENSIONS & WEIGHT

• Height: 360 mm (14.17")
  Width: 175 mm (6.89")
  Depth: 454 mm (17.9")
  Weight: 11.84 kg (26.10 lbs.)

SUPPORTED OPERATING SYSTEMS

• Microsoft Windows Server® with Hyper-V
  Red Hat® Enterprise Linux
  SUSE® Linux Enterprise Server
  VMware® ESXi
  Citrix® XenServer®
  Ubuntu Server
  Certify XenServer

PORTS

• Front panel: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port
  Back panel: 2x USB 3.0, 4x USB 2.0, VGA, serial connector
  Internal USB: 1x internal USB 3.0

CHASSIS

• Tower server

CHIPSET

• Intel C246

STORAGE

• 3.5” Enterprise SATA 7.2K HDDs
  3.5” Near Line SAS 7.2K HDDs
  3.5” 7.2K SATA Entry Drives

SLOTS

• 4 PCIe Slots:
  1x8 Gen3 (x16 connector) FH/HL
  1x8 Gen3 (x8 connector) FH/HL
  1x4 Gen3 (x8 connector) FH/HL
  1x1 Gen3 (x1 connector) FH/HL

NETWORK CONTROLLER

• 2 X 1GbE LOM

MANAGEMENT

• Embedded / At-the-Server
  iDRAC9 with Lifecycle Controller
  iDRAC Direct
  iDRAC RESTful API with Redfish

  Consoles
  OpenManage Enterprise
  OpenManage Essentials
  OpenManage Power Center

  Mobility
  OpenManage Mobile (requires OM Enterprise or OM Essentials)

  Tools
  iDRAC Service Module
  OpenManage Server Administrator
  Dell EMC Repository Manager
  Dell EMC System Update
  Dell EMC Server Update Utility
  Dell EMC Update Catalogs
  Dell EMC RACADM CLI
  IPMI Tool

  OpenManage Integrations
  Microsoft® System Center
  VMware® vCenter™
  BMC Truesight (available from BMC)
  Red Hat Ansible

  OpenManage Connections
  Nagios Core & Nagios XI
  Micro Focus
  Operations Manager i (OMi)
  IBM Tivoli Netcool/OMNIbus
