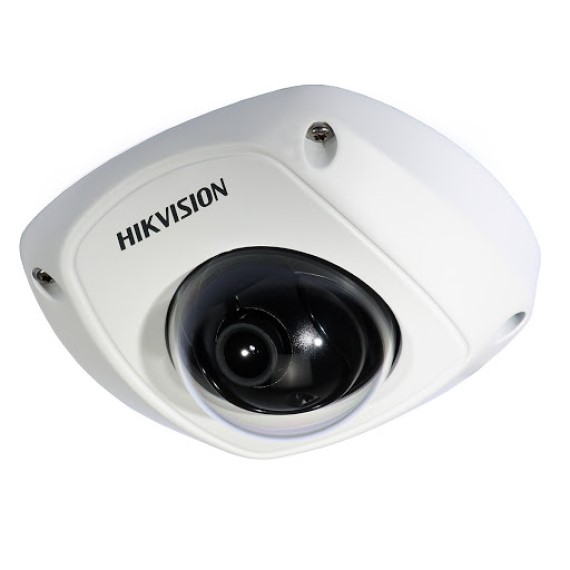

CAMERA IP MINI DOME HỒNG NGOẠI KHÔNG DÂY 2.0 MEGAPIXEL HIKVISION DS-2CD2522FWD-IW

Camera

Image Sensor

1/2.8 inch Progressive Scan CMOS

Min. Illumination

0.01Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter time

1/3 s to 1/10,000 s

Lens

2.8mm, 4mm, 6mm @ F2.0

Lens Mount

M12

Adjustment Range

Pan: -30º ~ 30º, Tilt: 0 ~ 75º, Rotation: 0 ~ 360º

Day& Night

IR cut filter with auto switch

Wide Dynamic Range

120 dB

Digital noise reduction

3D DNR

Compression Standard

Video Compression

H.264/MJPEG/H.264+

H.264 code profile

Main Profile

Video bit rate

32Kbps~16Mbps

Dual Stream

Yes


Max. Image Resolution

1920 x 1080

Frame Rate

50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)

60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)

Image Settings

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

BLC

Yes, zone configurable

ROI

Support

Network

Network Storage

NAS (Support NFS,SMB/CIFS), ANR

Alarm Trigger

Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Security

One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access

System Compatibility

ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface

Communication Interface

1 RJ45 10M / 100M Ethernet interface

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button

Yes

Wi-Fi Specification (-W)

Wireless Standards

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

20/40MHz Support

Modulation Mode

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transmit Power

11b: 17±1.5dBm @ 11Mbps

11g: 14±1.5dBm @ 54Mbps

11n: 12.5±1.5dBm

Receive Sensitivity

11b: -90dBm @ 11Mbps (Typical)

11g: -75dBm @ 54Mpbs (Typical)

11n: -74dBm (Typical)

Transmission Rate

11b: 11Mbps

11g: 54Mbps

11n: up to 150Mbps

Wireless Range

50m (depend on environment)

General

Power Supply

12VDC ± 10%, PoE (802.3af)

Power Consumption

Max. 5W

Impact Protection

IK08 Protection Level

Weather Proof

IP66

IR Range

10 meters

Dimensions

99.3 x 96.7 x 52.8 mm

Weight

600g

NOTE

-W series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol
