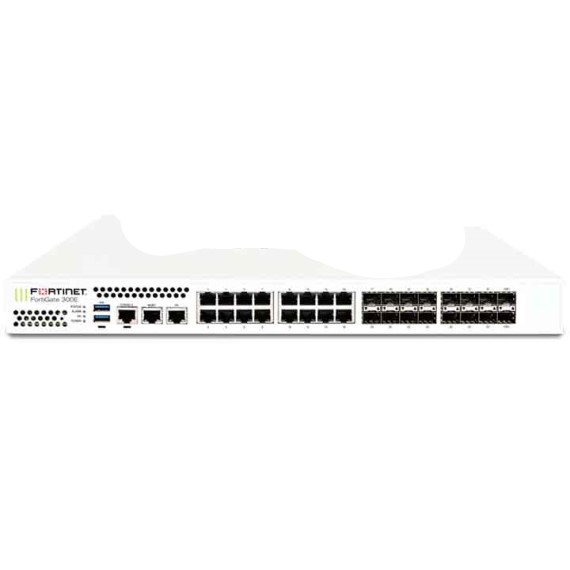

FORTIGATE 301E (FG-301E-BDL)
| Mã sản phẩm | FG-301E |
| Interfaces and Modules | |
| GE RJ45 Interfaces | 16 |
| GE SFP Slots | 16 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage NIL | 2x 240 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 32 / 32 / 20 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 32 / 32 / 20 Gbps |
| Firewall Latency (64 byte, UDP) | 3 μs |
| Firewall Throughput (Packet per Second) | 30 Mpps |
| Concurrent Sessions (TCP) | 4 Million |
| New Sessions/Second (TCP) | 300,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) 1 | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 2.5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, HTTP) 3 | 6.8 Gbps |
| Application Control Throughput (HTTP 64K) 2 | 7 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 48 |
| Maximum Number of FortiAPs (Total / Tunnel) | 512 / 256 |
| Maximum Number of FortiTokens | 1,000 |
| Maximum Number of Registered Endpoints | 600 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| System Performance — Optimal Traffic Mix | |
| IPS Throughput 2 | 11 Gbps |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 5 Gbps |
| NGFW Throughput 2, 4 | 3.5 Gbps |
| Threat Protection Throughput 2, 5 | 3 Gbps |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 |
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight | 16.6 lbs (7.6 kg) |
| Form Factor | 1 RU |
| Power Consumption (Average / Maximum) | 95 W / 180 W |
| Power Source | 100–240V 60–50Hz |
| Current (Maximum) | 6A |
| Heat Dissipation | 570 BTU/h |
| Redundant Power Supplies (Hot Swappable) | optional |
| Operating Environment and Certifications | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 48 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Tùy chọn Module quang SFP cho Firewall FortiGate 301E
| 1 GE SFP LX transceiver module | FG-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots. |
| 1 GE SFP RJ45 transceiver module | FG-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots. |
| 1 GE SFP SX transceiver module | FG-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots. |
Tùy chọn Power nguồn cho Firewall FortiGate 301E
| Optional Power Supply | SP-FG300E-PS | AC power supply for FG-300/301E and FG-500/501E. |
FORTIGATE 301E (FG-301E-BDL)
- 258.114.000đ
