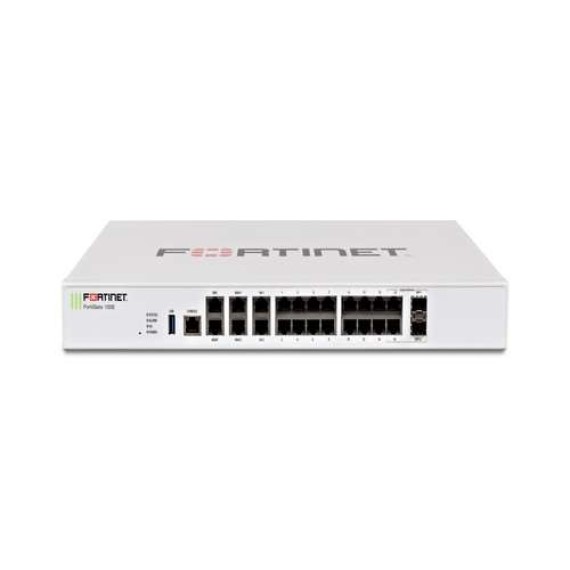

THIẾT BỊ TƯỜNG LỬA FORTINET FORTIGATE FG-100F-BDL-950-12
| Mã sản phẩm | FG-100F |
| Hardware Specifications | |
| GE RJ45 Ports | 12 |
| GE RJ45 Management/HA /DMZ Ports | 1 / 2 / 1 |
| GE SFP Slots | 4 |
| 10 GE SFP+ Slots | 2 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports | 4 |
| USB Port | 1 |
| Console Port | 1 |
| Internal Storage | - |
| Included Transceivers | 0 |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 2.6 Gbps |
| NGFW Throughput 2, 4 | 1.6 Gbps |
| Threat Protection Throughput 2, 5 | 1 Gbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) | 5 μs |
| Firewall Throughput (Packets Per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) 1 | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 |
| SSL-VPN Throughput | 750 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 1,800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 135,000 |
| Application Control Throughput (HTTP 64K) 2 | 2.2 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.73 x 17 x 10 |
| Height x Width x Length (mm) | 44 x 432 x 254 |
| Form Factor | Rack Mount, 1 RU |
| Weight | 7.25 lbs (3.29 kg) |
| Environment | |
| Power Required | 100–240V AC, 60–50 Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W |
| Heat Dissipation | 119.77 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Humidity | 10–90% non-condensing |
| Noise Level | 40.4 dBA |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
Tùy chọn Module quang SFP cho Firewall FortiGate 100F
| 1 GE SFP LX transceiver module | FG-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots. |
| 1 GE SFP RJ45 transceiver module | FG-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots. |
| 1 GE SFP SX transceiver module | FG-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots. |
| 10 GE SFP+ transceiver module, short range | FG-TRAN-SFP+SR | 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots. |
THIẾT BỊ TƯỜNG LỬA FORTINET FORTIGATE FG-100F-BDL-950-12
- 84.000.000đ
